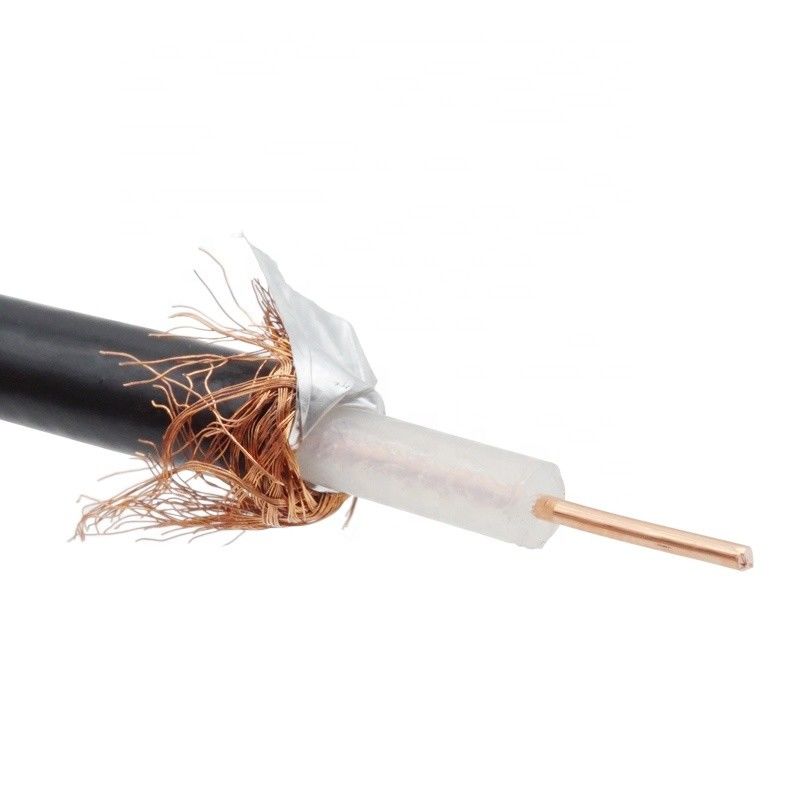

Waterproof RG59 RG6 HDTV CATV Coaxial Cable 1.02mm Conductor

Waterproof RG59 RG6 HDTV CATV Coaxial Cable 1.02mm Conductor

Large Image :  Waterproof RG59 RG6 HDTV CATV Coaxial Cable 1.02mm Conductor

Product Details:

Product Details:

Place of Origin:Guangzhou,China
Brand Name:OEM/ ODM/
Certification:CE/ RoHS/ ETL/ ISO
Model Number:RG6

Payment & Shipping Terms:

Minimum Order Quantity:20000 Meters
Price:Negotiation
Packaging Details:100 Meters/ Box, Coil/Plastic Reel/Wooden reel/Carton/pallet
Delivery Time:12-15 Work Days
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:200000 Meters per Week
Contact Now

Waterproof RG59 RG6 HDTV CATV Coaxial Cable 1.02mm Conductor

Description
Number Of Conductor::1Length::100m/200m/300m/customized
Jacket::Waterproof Material/PVC/PEConductor Material::Bare Copper/CCS
Application::CATVType::Coaxial
Conductor Diameter::0.81mm -1.02mmShield::Al Foil+braiding
High Light:

RG59 CATV Coaxial Cable

,

1.02mm CATV Coaxial Cable

,

Waterproof CATV Coaxial Cable


Coxial Cable RG59 RG6 HDTV CATV



1.Mainly Used in the Building Correspondence Synthesis Wiring System the Work Area

Correspondence Leading-out Terminal and between the Connection Distribution Frame Wiring.

2. The Housing Synthesis Wiring System’s User Correspondence Leading-out Terminal Arrives at Exile between Coils’ wiring.



Construction and Dimension
Item
RG59
RG58
RG6
RG7
RG11
Material of inner conductor
Cu
Cu
Cu
Cu
Cu
Diameter of inner conductor(mm)
0.81±0.02
19*0.20±0.01
1.00±0.02
1.29±0.02
1.63±0.02
Material of dielectric
Foam PE
PE
Foam PE
Foam PE
Foam PE
Diameter of Dielectric(mm)
3.66±0.15
2.95
4.57±0.01
5.72
7.11
Material of Shield
ALfoil+Al brading
BC/TC braiding
ALfoil+Al brading
ALfoil+Al brading
ALfoil+Al brading
<div class="magic-8" style="box-sizing: b
